h2output.c File Reference

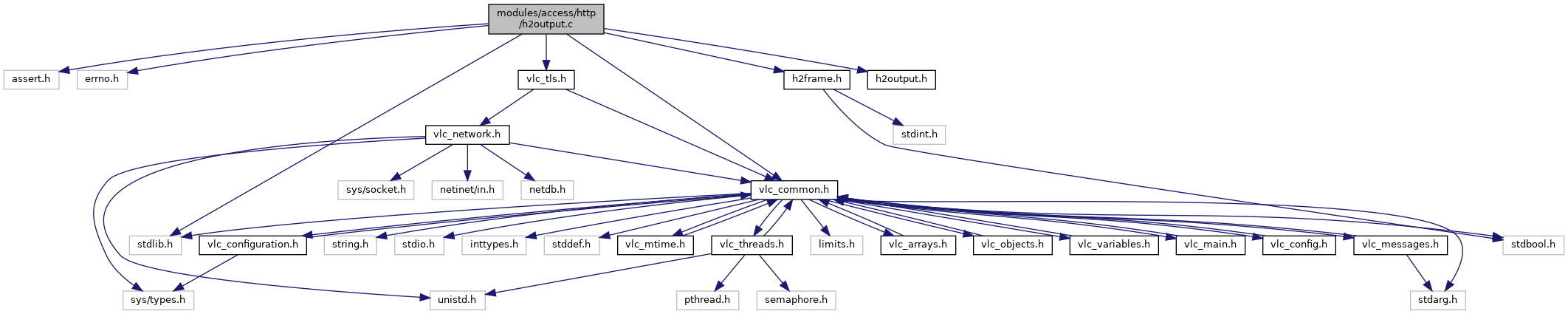

Include dependency graph for h2output.c:

Data Structures
struct	vlc_h2_queue
struct	vlc_h2_output

Macros
#define	VLC_H2_MAX_QUEUE   (1u << 24)

Functions
static int	vlc_h2_output_queue (struct vlc_h2_output *out, struct vlc_h2_queue *q, struct vlc_h2_frame *f)
	Queues one outgoing HTTP/2.
int	vlc_h2_output_send_prio (struct vlc_h2_output *out, struct vlc_h2_frame *f)
int	vlc_h2_output_send (struct vlc_h2_output *out, struct vlc_h2_frame *f)
static struct vlc_h2_frame *	vlc_h2_output_dequeue (struct vlc_h2_output *out)
	Dequeues one outgoing HTTP/2.
static void	vlc_h2_output_flush_unlocked (struct vlc_h2_output *out)
static ssize_t	vlc_https_send (vlc_tls_t *tls, const void *buf, size_t len)
	Sends bytes to a connection.
static int	vlc_h2_frame_send (struct vlc_tls *tls, struct vlc_h2_frame *f)
	Sends one HTTP/2 frame through TLS.
static void *	vlc_h2_output_thread (void *data)
	Output thread.
static void *	vlc_h2_client_output_thread (void *data)
struct vlc_h2_output *	vlc_h2_output_create (struct vlc_tls *tls, bool client)
void	vlc_h2_output_destroy (struct vlc_h2_output *out)

Macro Definition Documentation

VLC_H2_MAX_QUEUE

#define VLC_H2_MAX_QUEUE   (1u << 24)

Function Documentation

vlc_h2_client_output_thread()

static void * vlc_h2_client_output_thread ( void *  data )

static

References vlc_h2_output::failed, vlc_h2_output::lock, vlc_h2_output::tls, vlc_h2_output_thread(), vlc_https_send(), vlc_mutex_lock(), vlc_mutex_unlock(), and vlc_thread_set_name().

Referenced by vlc_h2_output_create().

vlc_h2_frame_send()

static int vlc_h2_frame_send ( struct vlc_tls *  tls, struct vlc_h2_frame *  f  )

static

Sends one HTTP/2 frame through TLS.

This function sends a whole HTTP/2 frame through a TLS session, then releases the memory used by the frame.

The caller must "own" the write side of the TLS session.

Note

This is a blocking function and may be a thread cancellation point.

Returns

0 on success, -1 if the connection failed

References vlc_h2_frame::data, vlc_cleanup_pop, vlc_cleanup_push, vlc_h2_frame_size(), and vlc_https_send().

Referenced by vlc_h2_output_thread().

vlc_h2_output_dequeue()

static struct vlc_h2_frame * vlc_h2_output_dequeue ( struct vlc_h2_output *  out )

static

Dequeues one outgoing HTTP/2.

References vlc_h2_output::closing, vlc_h2_queue::first, vlc_h2_queue::last, vlc_h2_output::lock, vlc_h2_frame::next, vlc_h2_output::prio, vlc_h2_output::queue, vlc_h2_output::size, unlikely, vlc_cond_wait(), vlc_h2_frame_size(), vlc_mutex_lock(), vlc_mutex_unlock(), vlc_restorecancel(), vlc_savecancel(), and vlc_h2_output::wait.

Referenced by vlc_h2_output_thread().

vlc_h2_output_flush_unlocked()

static void vlc_h2_output_flush_unlocked ( struct vlc_h2_output *  out )

static

References vlc_h2_queue::first, vlc_h2_frame::next, vlc_h2_output::prio, and vlc_h2_output::queue.

Referenced by vlc_h2_output_destroy(), and vlc_h2_output_thread().

vlc_h2_output_queue()

static int vlc_h2_output_queue ( struct vlc_h2_output *  out, struct vlc_h2_queue *  q, struct vlc_h2_frame *  f  )

static

Queues one outgoing HTTP/2.

References vlc_h2_output::failed, vlc_h2_queue::last, vlc_h2_output::lock, vlc_h2_frame::next, vlc_h2_output::size, unlikely, vlc_cond_signal(), vlc_h2_frame_size(), VLC_H2_MAX_QUEUE, vlc_mutex_lock(), vlc_mutex_unlock(), and vlc_h2_output::wait.

Referenced by vlc_h2_output_send(), and vlc_h2_output_send_prio().

vlc_h2_output_thread()

static void * vlc_h2_output_thread ( void *  data )

static

Output thread.

References vlc_h2_output::failed, vlc_h2_queue::first, vlc_h2_queue::last, vlc_h2_output::lock, vlc_h2_output::prio, vlc_h2_output::queue, vlc_h2_output::tls, vlc_h2_frame_send(), vlc_h2_output_dequeue(), vlc_h2_output_flush_unlocked(), vlc_mutex_lock(), vlc_mutex_unlock(), and vlc_thread_set_name().

Referenced by vlc_h2_client_output_thread(), and vlc_h2_output_create().

vlc_https_send()

static ssize_t vlc_https_send ( vlc_tls_t *  tls, const void *  buf, size_t  len  )

static

Sends bytes to a connection.

Note

This may be a cancellation point. The caller is responsible for serializing writes on a given connection.

References count, pollfd::events, pollfd::fd, vlc_tls::ops, poll(), POLLOUT, vlc_restorecancel(), vlc_savecancel(), vlc_tls_GetPollFD(), and vlc_tls_operations::writev.

Referenced by vlc_h2_client_output_thread(), and vlc_h2_frame_send().
