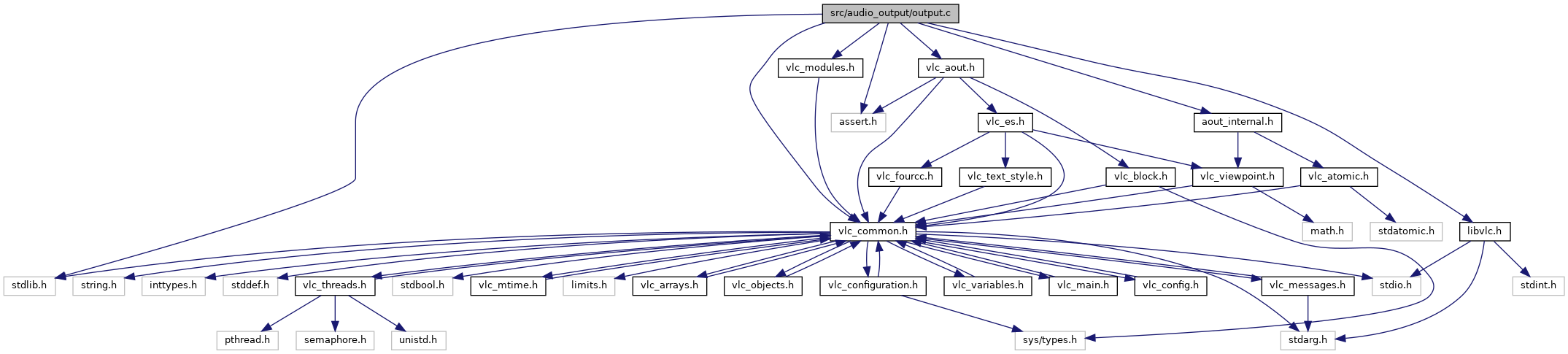

Include dependency graph for output.c:

Data Structures
struct	aout_dev

Typedefs
typedef struct aout_dev	aout_dev_t

Functions
static float	clampf (const float value, const float min, const float max)

static int	var_Copy (vlc_object_t src, const char name, vlc_value_t prev, vlc_value_t value, void *data)

static int	var_CopyDevice (vlc_object_t src, const char name, vlc_value_t prev, vlc_value_t value, void *data)

static void	aout_TimingNotify (audio_output_t *aout, vlc_tick_t system_ts, vlc_tick_t audio_ts)

static void	aout_DrainedNotify (audio_output_t *aout)

static void	aout_VolumeNotify (audio_output_t *aout, float volume)
	Supply or update the current custom ("hardware") volume.

static void	aout_MuteNotify (audio_output_t *aout, bool mute)

static void	aout_PolicyNotify (audio_output_t *aout, bool cork)

static void	aout_DeviceNotify (audio_output_t aout, const char id)

static void	aout_HotplugNotify (audio_output_t aout, const char id, const char *name)

static void	aout_RestartNotify (audio_output_t *aout, bool restart_dec)

void	aout_InputRequestRestart (audio_output_t *aout)

static int	aout_GainNotify (audio_output_t *aout, float gain)

static int	FilterCallback (vlc_object_t obj, const char var, vlc_value_t prev, vlc_value_t cur, void *data)

static int	StereoModeCallback (vlc_object_t obj, const char varname, vlc_value_t oldval, vlc_value_t newval, void *data)

static int	MixModeCallback (vlc_object_t obj, const char varname, vlc_value_t oldval, vlc_value_t newval, void *data)

static void	aout_ChangeViewpoint (audio_output_t , const vlc_viewpoint_t )

static int	ViewpointCallback (vlc_object_t obj, const char var, vlc_value_t prev, vlc_value_t cur, void *data)

audio_output_t *	aout_New (vlc_object_t *parent)
	Creates an audio output object and initializes an output module.

audio_output_t *	aout_Hold (audio_output_t *aout)

static void	aout_Destroy (audio_output_t *aout)
	Deinitializes an audio output module and destroys an audio output object.

void	aout_Release (audio_output_t *aout)

static int	aout_PrepareStereoMode (audio_output_t aout, const audio_sample_format_t restrict fmt)

static void	aout_UpdateStereoMode (audio_output_t aout, int mode, audio_sample_format_t restrict fmt, aout_filters_cfg_t *filters_cfg)

static bool	aout_HasStereoMode (audio_output_t *aout, int mode)

static void	aout_AddMixModeChoice (audio_output_t aout, int mode, const char suffix, const audio_sample_format_t *restrict fmt)

static void	aout_SetupMixModeChoices (audio_output_t aout, const audio_sample_format_t restrict fmt)

static bool	aout_HasMixModeChoice (audio_output_t *aout, int mode)

static void	aout_UpdateMixMode (audio_output_t aout, int mode, audio_sample_format_t restrict fmt)

int	aout_OutputNew (audio_output_t aout, vlc_aout_stream stream, audio_sample_format_t fmt, int input_profile, audio_sample_format_t filter_fmt, aout_filters_cfg_t *filters_cfg)
	Starts an audio output stream.

void	aout_OutputDelete (audio_output_t *aout)
	Stops the audio output stream (undoes aout_OutputNew()).

float	aout_VolumeGet (audio_output_t *aout)
	Gets the volume of the audio output stream (independent of mute).

int	aout_VolumeSet (audio_output_t *aout, float vol)
	Sets the volume of the audio output stream.

int	aout_VolumeUpdate (audio_output_t aout, int value, float volp)
	Adjusts the volume.

int	aout_MuteGet (audio_output_t *aout)
	Gets the audio output stream mute flag.

int	aout_MuteSet (audio_output_t *aout, bool mute)
	Sets the audio output stream mute flag.

char *	aout_DeviceGet (audio_output_t *aout)
	Gets the currently selected device.

int	aout_DeviceSet (audio_output_t aout, const char id)
	Selects an audio output device.

int	aout_DevicesList (audio_output_t aout, char ids, char *names)
	Enumerates possible audio output devices.

vlc_audio_meter_plugin *	aout_AddMeterPlugin (audio_output_t aout, const char chain, const struct vlc_audio_meter_plugin_owner *meter_plugin_owner)

void	aout_RemoveMeterPlugin (audio_output_t aout, vlc_audio_meter_plugin plugin)

Variables
static const struct vlc_audio_output_events	aout_events

Typedef Documentation

◆ aout_dev_t

typedef struct aout_dev aout_dev_t

Function Documentation

◆ aout_AddMeterPlugin()

vlc_audio_meter_plugin * aout_AddMeterPlugin	(	audio_output_t *	aout,
		const char *	chain,
		const struct vlc_audio_meter_plugin_owner *	meter_plugin_owner
	)

References aout_owner(), aout_owner_t::meter, and vlc_audio_meter_AddPlugin().

Referenced by vlc_player_AddMetadataLoudnessListener().

◆ aout_AddMixModeChoice()

static void aout_AddMixModeChoice	(	audio_output_t *	aout,
		int	mode,
		const char *	suffix,
		const audio_sample_format_t *restrict	fmt
	)

static

References aout_FormatPrintChannels(), asprintf(), vlc_value_t::i_int, var_Change(), and VLC_VAR_ADDCHOICE.

Referenced by aout_SetupMixModeChoices().

◆ aout_ChangeViewpoint()

static void aout_ChangeViewpoint	(	audio_output_t *	aout,
		const vlc_viewpoint_t *	p_viewpoint
	)

static

References aout_owner(), aout_owner_t::lock, aout_owner_t::update, aout_owner_t::value, vlc_mutex_lock(), vlc_mutex_unlock(), and aout_owner_t::vp.

Referenced by ViewpointCallback().

◆ aout_Destroy()

static void aout_Destroy ( audio_output_t * aout )

static

Deinitializes an audio output module and destroys an audio output object.

References aout_owner(), aout_owner_t::dev, audio_output::device_select, FilterCallback(), aout_owner_t::list, aout_owner_t::lock, aout_owner_t::meter, MixModeCallback(), module_unneed, audio_output::mute_set, aout_dev::name, aout_dev::node, StereoModeCallback(), var_Copy(), var_CopyDevice(), var_DelCallback(), var_SetFloat(), ViewpointCallback(), vlc_audio_meter_Destroy(), vlc_list_foreach, vlc_list_remove(), vlc_mutex_lock(), vlc_mutex_unlock(), VLC_OBJECT, vlc_object_delete, vlc_object_parent, and audio_output::volume_set.

Referenced by aout_Release().

◆ aout_DeviceNotify()

static void aout_DeviceNotify	(	audio_output_t *	aout,
		const char *	id
	)

static

References var_SetString().

◆ aout_DrainedNotify()

static void aout_DrainedNotify ( audio_output_t * aout )

static

References aout_owner(), aout_owner_t::main_stream, and vlc_aout_stream_NotifyDrained().

◆ aout_GainNotify()

static int aout_GainNotify	(	audio_output_t *	aout,
		float	gain
	)

static

References aout_owner(), aout_owner_t::lock, aout_owner_t::main_stream, vlc_aout_stream_NotifyGain(), and vlc_mutex_assert.

◆ aout_HasMixModeChoice()

static bool aout_HasMixModeChoice	(	audio_output_t *	aout,
		int	mode
	)

static

References count, var_Change(), and VLC_VAR_GETCHOICES.

Referenced by aout_OutputNew(), and aout_UpdateMixMode().

◆ aout_HasStereoMode()

static bool aout_HasStereoMode	(	audio_output_t *	aout,
		int	mode
	)

static

References count, var_Change(), and VLC_VAR_GETCHOICES.

Referenced by aout_OutputNew().

◆ aout_HotplugNotify()

static void aout_HotplugNotify	(	audio_output_t *	aout,
		const char *	id,
		const char *	name
	)

static

References aout_owner(), aout_owner_t::count, aout_owner_t::dev, aout_dev::id, aout_owner_t::list, aout_owner_t::lock, aout_dev::name, name, aout_dev::node, p, strdup(), unlikely, vlc_list_append(), vlc_list_foreach, vlc_list_remove(), vlc_mutex_lock(), and vlc_mutex_unlock().

◆ aout_InputRequestRestart()

void aout_InputRequestRestart ( audio_output_t * aout )

References aout_owner(), AOUT_RESTART_FILTERS, aout_owner_t::main_stream, and vlc_aout_stream_RequestRestart().

Referenced by FilterCallback(), and VisualizationCallback().

◆ aout_MuteNotify()

static void aout_MuteNotify	(	audio_output_t *	aout,
		bool	mute
	)

static

References var_SetBool().

◆ aout_New()

audio_output_t * aout_New ( vlc_object_t * parent )

Creates an audio output object and initializes an output module.

References _, aout_events, aout_owner(), aout_owner_t::bitexact, config_FindConfig(), aout_owner_t::dev, audio_output::device_select, audio_output::events, FilterCallback(), likely, module_config_t::list, aout_owner_t::list, module_config_t::list_count, module_config_t::list_text, aout_owner_t::lock, aout_owner_t::main_stream, aout_owner_t::meter, MixModeCallback(), module_exists(), module_need_var, msg_Err, audio_output::mute_set, module_config_t::psz, vlc_value_t::psz_string, aout_owner_t::rc, aout_owner_t::requested_mix_mode, aout_owner_t::requested_stereo_mode, audio_output::start, StereoModeCallback(), audio_output::stop, unlikely, aout_owner_t::update, aout_owner_t::value, var_AddCallback(), var_Change(), var_Copy(), var_CopyDevice(), var_Create(), var_GetInteger(), var_GetNonEmptyString(), var_InheritBool(), var_SetString(), ViewpointCallback(), vlc_atomic_rc_init(), vlc_audio_meter_Init, vlc_custom_create, vlc_gettext(), vlc_list_init(), vlc_mutex_init(), vlc_object_delete, VLC_VAR_ADDCHOICE, VLC_VAR_ADDRESS, VLC_VAR_BOOL, VLC_VAR_DOINHERIT, VLC_VAR_FLOAT, VLC_VAR_INTEGER, VLC_VAR_SETTEXT, VLC_VAR_STRING, vlc_viewpoint_init(), audio_output::volume_set, and aout_owner_t::vp.

◆ aout_OutputDelete()

void aout_OutputDelete ( audio_output_t * p_aout )

Stops the audio output stream (undoes aout_OutputNew()).

Note: This can only be called after a successful aout_OutputNew().

Warning: The caller must NOT hold the audio output lock.

References aout_owner(), aout_owner_t::lock, aout_owner_t::main_stream, audio_output::stop, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by stream_CheckReady(), vlc_aout_stream_Delete(), and vlc_aout_stream_New().

◆ aout_OutputNew()

int aout_OutputNew	(	audio_output_t *	aout,
		vlc_aout_stream *	stream,
		audio_sample_format_t *	fmt,
		int	input_profile,
		audio_sample_format_t *	filter_fmt,
		aout_filters_cfg_t *	filters_cfg
	)

Starts an audio output stream.

Parameters

aout	the audio output instance to initialize from
stream	the audio output stream to initialize from
fmt	the format to request to the output
input_profile	the audio profile to request from the audio output
filter_fmt	the format requested from the filters
filters_cfg	the configuration to load the audio filters from

Warning: The caller must NOT hold the audio output lock.

References AOUT_CHANS_7_1, AOUT_CHANS_STEREO, AOUT_FMT_LINEAR, aout_FormatNbChannels(), aout_FormatPrepare(), aout_FormatPrint, aout_HasMixModeChoice(), aout_HasStereoMode(), AOUT_MIX_MODE_BINAURAL, aout_owner(), aout_PrepareStereoMode(), aout_SetupMixModeChoices(), aout_SetWavePhysicalChannels(), aout_UpdateMixMode(), aout_UpdateStereoMode(), AOUT_VAR_CHAN_UNSET, ARRAY_SIZE, AUDIO_CHANNEL_TYPE_AMBISONICS, AUDIO_CHANNEL_TYPE_BITMAP, audio_format_t::channel_type, audio_output::current_sink_info, audio_output::flush, audio_output::headphones, audio_format_t::i_bitspersample, audio_format_t::i_bytes_per_frame, audio_format_t::i_channels, audio_format_t::i_format, audio_format_t::i_frame_length, audio_format_t::i_physical_channels, aout_owner_t::lock, aout_owner_t::main_stream, msg_Err, msg_Warn, audio_output::play, aout_owner_t::requested_mix_mode, audio_output::start, var_Change(), VLC_CODEC_A52, VLC_CODEC_DTS, VLC_CODEC_DTSHD, VLC_CODEC_EAC3, VLC_CODEC_FL32, VLC_CODEC_S16N, VLC_EGENERIC, vlc_mutex_lock(), vlc_mutex_unlock(), VLC_SUCCESS, and VLC_VAR_CLEARCHOICES.

Referenced by stream_CheckReady(), and vlc_aout_stream_New().

◆ aout_PolicyNotify()

static void aout_PolicyNotify	(	audio_output_t *	aout,
		bool	cork
	)

static

References var_DecInteger(), var_IncInteger(), and vlc_object_parent.

◆ aout_PrepareStereoMode()

static int aout_PrepareStereoMode	(	audio_output_t *	aout,
		const audio_sample_format_t *restrict	fmt
	)

static

References _, AOUT_CHANMODE_DOLBYSTEREO, AOUT_CHANMODE_DUALMONO, AOUT_FMT_LINEAR, aout_owner(), AOUT_VAR_CHAN_DOLBYS, AOUT_VAR_CHAN_LEFT, AOUT_VAR_CHAN_MONO, AOUT_VAR_CHAN_RIGHT, AOUT_VAR_CHAN_RSTEREO, AOUT_VAR_CHAN_STEREO, AOUT_VAR_CHAN_UNSET, vlc_value_t::i_int, aout_owner_t::requested_stereo_mode, var_Change(), and VLC_VAR_ADDCHOICE.

Referenced by aout_OutputNew().

◆ aout_RemoveMeterPlugin()

void aout_RemoveMeterPlugin	(	audio_output_t *	aout,
		vlc_audio_meter_plugin *	plugin
	)

References aout_owner(), aout_owner_t::meter, and vlc_audio_meter_RemovePlugin().

Referenced by vlc_player_AddMetadataLoudnessListener(), and vlc_player_RemoveMetadataLoudnessListener().

◆ aout_RestartNotify()

static void aout_RestartNotify	(	audio_output_t *	aout,
		bool	restart_dec
	)

static

References aout_owner(), AOUT_RESTART_OUTPUT, AOUT_RESTART_OUTPUT_DEC, aout_owner_t::main_stream, and vlc_aout_stream_RequestRestart().

◆ aout_SetupMixModeChoices()

static void aout_SetupMixModeChoices	(	audio_output_t *	aout,
		const audio_sample_format_t *restrict	fmt
	)

static

References _, aout_AddMixModeChoice(), AOUT_CHANS_4_0, AOUT_CHANS_5_1, AOUT_CHANS_7_1, AOUT_MIX_MODE_4_0, AOUT_MIX_MODE_5_1, AOUT_MIX_MODE_7_1, AOUT_MIX_MODE_BINAURAL, AOUT_MIX_MODE_STEREO, AOUT_MIX_MODE_UNSET, AUDIO_CHANNEL_TYPE_AMBISONICS, audio_format_t::i_physical_channels, and module_exists().

Referenced by aout_OutputNew().

◆ aout_TimingNotify()

static void aout_TimingNotify	(	audio_output_t *	aout,
		vlc_tick_t	system_ts,
		vlc_tick_t	audio_ts
	)

static

References aout_owner(), aout_owner_t::main_stream, and vlc_aout_stream_NotifyTiming().

◆ aout_UpdateMixMode()

static void aout_UpdateMixMode	(	audio_output_t *	aout,
		int	mode,
		audio_sample_format_t *restrict	fmt
	)

static

References AOUT_CHANMODE_BINAURAL, AOUT_CHANS_4_0, AOUT_CHANS_5_1, AOUT_CHANS_7_1, AOUT_CHANS_STEREO, aout_HasMixModeChoice(), AOUT_MIX_MODE_4_0, AOUT_MIX_MODE_5_1, AOUT_MIX_MODE_7_1, AOUT_MIX_MODE_BINAURAL, AOUT_MIX_MODE_STEREO, AOUT_MIX_MODE_UNSET, AOUT_VAR_CHAN_UNSET, var_Change(), and VLC_VAR_SETVALUE.

Referenced by aout_OutputNew().

◆ aout_UpdateStereoMode()

static void aout_UpdateStereoMode	(	audio_output_t *	aout,
		int	mode,
		audio_sample_format_t *restrict	fmt,
		aout_filters_cfg_t *	filters_cfg
	)

static

References AOUT_CHAN_CENTER, AOUT_CHANIDX_DISABLE, AOUT_CHANIDX_LEFT, AOUT_CHANIDX_MAX, AOUT_CHANIDX_RIGHT, AOUT_CHANMODE_DOLBYSTEREO, aout_FormatPrepare(), AOUT_VAR_CHAN_DOLBYS, AOUT_VAR_CHAN_LEFT, AOUT_VAR_CHAN_MONO, AOUT_VAR_CHAN_RIGHT, AOUT_VAR_CHAN_RSTEREO, AOUT_VAR_CHAN_STEREO, aout_filters_cfg_t::remap, var_Change(), and VLC_VAR_SETVALUE.

Referenced by aout_OutputNew().

◆ aout_VolumeNotify()

static void aout_VolumeNotify	(	audio_output_t *	aout,
		float	volume
	)

static

Supply or update the current custom ("hardware") volume.

Parameters

aout	the audio output notifying the new volume
volume	current custom volume

Warning: The caller (i.e. the audio output plug-in) is responsible for interlocking and synchronizing call to this function and to the audio_output_t.volume_set callback. This ensures that VLC gets correct volume information (possibly with a latency).

References var_SetFloat().

◆ clampf()

static float clampf	(	const float	value,
		const float	min,
		const float	max
	)

inlinestatic

Referenced by aout_VolumeUpdate().

◆ FilterCallback()

static int FilterCallback	(	vlc_object_t *	obj,
		const char *	var,
		vlc_value_t	prev,
		vlc_value_t	cur,
		void *	data
	)

static

References aout_InputRequestRestart(), vlc_value_t::psz_string, var, and VLC_SUCCESS.

Referenced by aout_Destroy(), and aout_New().

◆ MixModeCallback()

static int MixModeCallback	(	vlc_object_t *	obj,
		const char *	varname,
		vlc_value_t	oldval,
		vlc_value_t	newval,
		void *	data
	)

static

References aout_owner(), AOUT_RESTART_OUTPUT, vlc_value_t::i_int, aout_owner_t::lock, aout_owner_t::main_stream, aout_owner_t::requested_mix_mode, vlc_aout_stream_RequestRestart(), vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by aout_Destroy(), and aout_New().

◆ StereoModeCallback()

static int StereoModeCallback	(	vlc_object_t *	obj,
		const char *	varname,
		vlc_value_t	oldval,
		vlc_value_t	newval,
		void *	data
	)

static

References aout_owner(), AOUT_RESTART_OUTPUT, vlc_value_t::i_int, aout_owner_t::lock, aout_owner_t::main_stream, aout_owner_t::requested_stereo_mode, vlc_aout_stream_RequestRestart(), vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by aout_Destroy(), and aout_New().

◆ var_Copy()

static int var_Copy	(	vlc_object_t *	src,
		const char *	name,
		vlc_value_t	prev,
		vlc_value_t	value,
		void *	data
	)

static

References name, vlc_list::prev, and var_Set().

Referenced by aout_Destroy(), and aout_New().

◆ var_CopyDevice()

static int var_CopyDevice	(	vlc_object_t *	src,
		const char *	name,
		vlc_value_t	prev,
		vlc_value_t	value,
		void *	data
	)

static

References name, vlc_list::prev, and var_Set().

Referenced by aout_Destroy(), and aout_New().

◆ ViewpointCallback()

static int ViewpointCallback	(	vlc_object_t *	obj,
		const char *	var,
		vlc_value_t	prev,
		vlc_value_t	cur,
		void *	data
	)

static

References aout_ChangeViewpoint(), vlc_value_t::p_address, var, and VLC_SUCCESS.

Referenced by aout_Destroy(), and aout_New().

Variable Documentation

◆ aout_events

const struct vlc_audio_output_events aout_events

static

Initial value:

= {
    aout_TimingNotify,
    aout_DrainedNotify,
    aout_VolumeNotify,
    aout_MuteNotify,
    aout_PolicyNotify,
    aout_DeviceNotify,
    aout_HotplugNotify,
    aout_RestartNotify,
    aout_GainNotify,
}

Referenced by aout_New().

Data Structures

Typedefs

Functions

Variables

Typedef Documentation

◆ aout_dev_t

Function Documentation

◆ aout_AddMeterPlugin()

◆ aout_AddMixModeChoice()

◆ aout_ChangeViewpoint()

◆ aout_Destroy()

◆ aout_DeviceNotify()

◆ aout_DrainedNotify()

◆ aout_GainNotify()

◆ aout_HasMixModeChoice()

◆ aout_HasStereoMode()

◆ aout_HotplugNotify()

◆ aout_InputRequestRestart()

◆ aout_MuteNotify()

◆ aout_New()

◆ aout_OutputDelete()

◆ aout_OutputNew()

◆ aout_PolicyNotify()

◆ aout_PrepareStereoMode()

◆ aout_RemoveMeterPlugin()

◆ aout_RestartNotify()

◆ aout_SetupMixModeChoices()

◆ aout_TimingNotify()

◆ aout_UpdateMixMode()

◆ aout_UpdateStereoMode()

◆ aout_VolumeNotify()

◆ clampf()

◆ FilterCallback()

◆ MixModeCallback()

◆ StereoModeCallback()

◆ var_Copy()

◆ var_CopyDevice()

◆ ViewpointCallback()

Variable Documentation

◆ aout_events
