decoder.c File Reference

The input decoder connects the input client pushing data to the decoder implementation (through the matching elementary stream) and the following output for audio, video and subtitles. More...

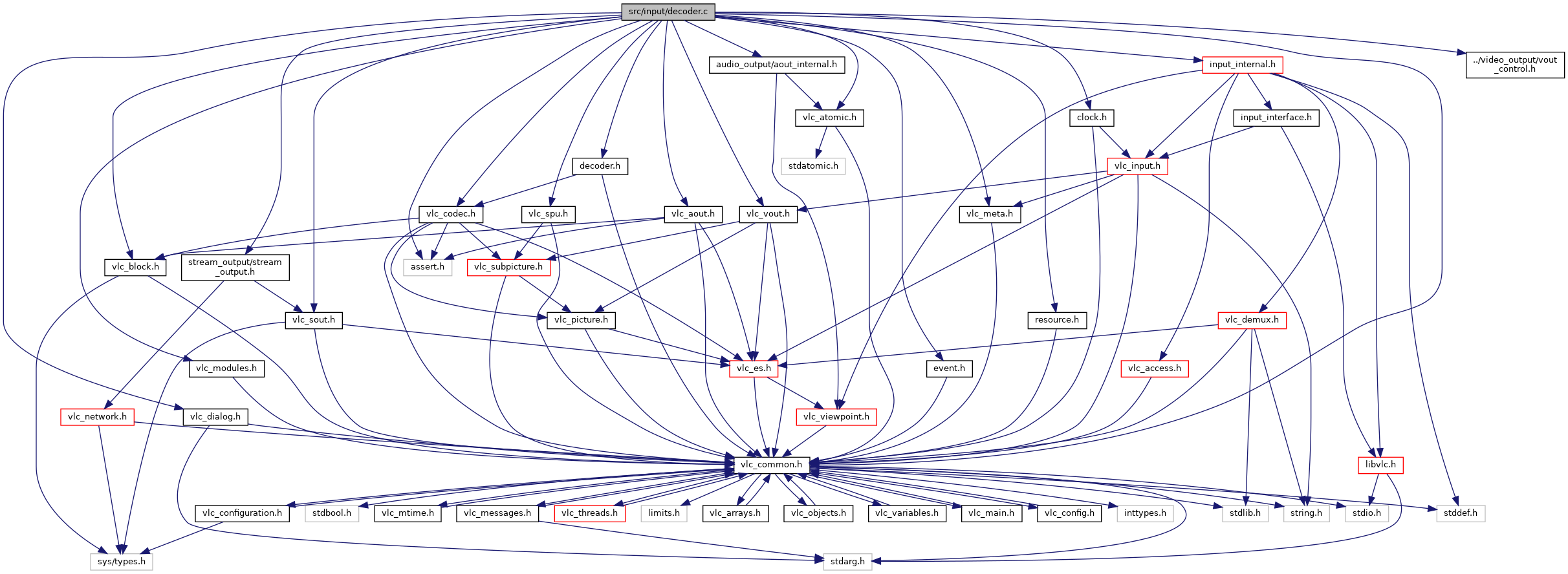

Include dependency graph for decoder.c:

Data Structures
struct	vlc_input_decoder_t

Macros
#define	PREROLL_NONE   VLC_TICK_MIN
#define	PREROLL_FORCED   VLC_TICK_MAX
#define	DECODER_BOGUS_VIDEO_DELAY   ((vlc_tick_t)(DEFAULT_PTS_DELAY * 30))
#define	DECODER_SPU_VOUT_WAIT_DURATION   VLC_TICK_FROM_MS(200)
#define	BLOCK_FLAG_CORE_PRIVATE_RELOADED   (1 << BLOCK_FLAG_CORE_PRIVATE_SHIFT)
#define	decoder_Notify(decoder_priv, event, ...)

Enumerations
enum	reload { RELOAD_NO_REQUEST , RELOAD_DECODER , RELOAD_DECODER_AOUT }

Functions
static vlc_input_decoder_t *	dec_get_owner (decoder_t *p_dec)
static bool	vlc_input_decoder_IsSynchronous (const vlc_input_decoder_t *dec)
	When the input decoder is being used only for packetizing (happen in stream output configuration.), there's no need to spawn a decoder thread.
static void	Decoder_ChangeOutputPause (vlc_input_decoder_t *p_owner, bool paused, vlc_tick_t date)
static void	Decoder_ChangeOutputRate (vlc_input_decoder_t *p_owner, float rate)
static void	Decoder_ChangeOutputDelay (vlc_input_decoder_t *p_owner, vlc_tick_t delay)
static void	Decoder_UpdateOutState (vlc_input_decoder_t *owner)
static int	LoadDecoder (decoder_t *p_dec, bool b_packetizer, es_format_t *fmt_in)
	Load a decoder module.
static int	DecoderThread_Reload (vlc_input_decoder_t *p_owner, const es_format_t *restrict p_fmt, enum reload reload)
static void	DecoderUpdateFormatLocked (vlc_input_decoder_t *p_owner)
static void	MouseEvent (const vlc_mouse_t *newmouse, void *user_data)
static bool	aout_replaygain_changed (const audio_replay_gain_t *a, const audio_replay_gain_t *b)
static int	ModuleThread_UpdateAudioFormat (decoder_t *p_dec)
static int	CreateVoutIfNeeded (vlc_input_decoder_t *)
static int	ModuleThread_UpdateVideoFormat (decoder_t *p_dec, vlc_video_context *vctx)
static vlc_decoder_device *	ModuleThread_GetDecoderDevice (decoder_t *p_dec)
static picture_t *	ModuleThread_NewVideoBuffer (decoder_t *p_dec)
static subpicture_t *	ModuleThread_NewSpuBuffer (decoder_t *p_dec, const subpicture_updater_t *p_updater)
static int	InputThread_GetInputAttachments (decoder_t *p_dec, input_attachment_t ***ppp_attachment, int *pi_attachment)
static vlc_tick_t	ModuleThread_GetDisplayDate (decoder_t *p_dec, vlc_tick_t system_now, vlc_tick_t i_ts)
static float	ModuleThread_GetDisplayRate (decoder_t *p_dec)
vlc_frame_t *	decoder_NewAudioBuffer (decoder_t *dec, int samples)
	This function will return a new audio buffer usable by a decoder as an output buffer.
static void	RequestReload (vlc_input_decoder_t *p_owner)
static int	DecoderWaitUnblock (vlc_input_decoder_t *p_owner)
static void	DecoderUpdatePreroll (vlc_tick_t *pi_preroll, const vlc_frame_t *p)
static void	DecoderSendSubstream (vlc_input_decoder_t *p_owner)
static void	DecoderThread_ProcessSout (vlc_input_decoder_t *p_owner, vlc_frame_t *frame)
static void	GetCcChannels (vlc_input_decoder_t *owner, size_t *max_channels, uint64_t *bitmap)
static bool	SubDecoderIsCc (vlc_input_decoder_t *subdec)
static void	DecoderPlayCcLocked (vlc_input_decoder_t *p_owner, vlc_frame_t *p_cc, const decoder_cc_desc_t *p_desc)
static void	PacketizerGetCc (vlc_input_decoder_t *p_owner, decoder_t *p_dec_cc)
static void	ModuleThread_QueueCc (decoder_t *p_videodec, vlc_frame_t *p_cc, const decoder_cc_desc_t *p_desc)
static int	ModuleThread_PlayVideo (vlc_input_decoder_t *p_owner, picture_t *p_picture)
static void	ModuleThread_QueueVideo (decoder_t *p_dec, picture_t *p_pic)
static vlc_decoder_device *	thumbnailer_get_device (decoder_t *p_dec)
static picture_t *	thumbnailer_buffer_new (decoder_t *p_dec)
static void	ModuleThread_QueueThumbnail (decoder_t *p_dec, picture_t *p_pic)
static int	ModuleThread_PlayAudio (vlc_input_decoder_t *p_owner, vlc_frame_t *p_audio)
static void	ModuleThread_QueueAudio (decoder_t *p_dec, vlc_frame_t *p_aout_buf)
static void	ModuleThread_PlaySpu (vlc_input_decoder_t *p_owner, subpicture_t *p_subpic)
static void	ModuleThread_QueueSpu (decoder_t *p_dec, subpicture_t *p_spu)
static void	DecoderThread_ProcessInput (vlc_input_decoder_t *p_owner, vlc_frame_t *frame)
	Decode a frame.
static void	DecoderThread_DecodeBlock (vlc_input_decoder_t *p_owner, vlc_frame_t *frame)
static void	DecoderThread_Flush (vlc_input_decoder_t *p_owner)
static void *	DecoderThread (void *p_data)
	The decoding main loop.
static vlc_input_decoder_t *	CreateDecoder (vlc_object_t *p_parent, const struct vlc_input_decoder_cfg *cfg)
	Create a decoder object.
static void	DeleteDecoder (vlc_input_decoder_t *p_owner, enum es_format_category_e i_cat)
	Destroys a decoder object.
static void	DecoderUnsupportedCodec (decoder_t *p_dec, const es_format_t *fmt, bool b_decoding)
static vlc_input_decoder_t *	decoder_New (vlc_object_t *p_parent, const struct vlc_input_decoder_cfg *cfg)
vlc_input_decoder_t *	vlc_input_decoder_New (vlc_object_t *parent, const struct vlc_input_decoder_cfg *cfg)
	Spawns a new decoder thread from the input thread.
vlc_input_decoder_t *	vlc_input_decoder_Create (vlc_object_t *p_parent, const es_format_t *fmt, const char *es_id, struct vlc_clock_t *clock, input_resource_t *p_resource)
	Spawn a decoder thread outside of the input thread.
static void	RemoveCcDecoder (vlc_input_decoder_t *owner, vlc_input_decoder_t *subdec)
void	vlc_input_decoder_Delete (vlc_input_decoder_t *p_owner)
	Delete an existing vlc_input_decoder_t instance.
void	vlc_subdec_desc_Clean (struct vlc_subdec_desc *desc)
static void	GetCCDescLocked (vlc_input_decoder_t *owner, struct vlc_subdec_desc *desc)
static void	GetStatusLocked (vlc_input_decoder_t *p_owner, struct vlc_input_decoder_status *status)
void	vlc_input_decoder_DecodeWithStatus (vlc_input_decoder_t *p_owner, vlc_frame_t *frame, bool b_do_pace, struct vlc_input_decoder_status *status)
	Get the last status of the decoder.
void	vlc_input_decoder_Decode (vlc_input_decoder_t *p_owner, vlc_frame_t *frame, bool b_do_pace)
	Put a vlc_frame_t in the decoder's fifo.
bool	vlc_input_decoder_IsEmpty (vlc_input_decoder_t *p_owner)
	This function returns true if the decoder fifo is empty and false otherwise.
void	vlc_input_decoder_Drain (vlc_input_decoder_t *p_owner)
	Signals that there are no further frames to decode, and requests that the decoder drain all pending buffers.
void	vlc_input_decoder_Flush (vlc_input_decoder_t *p_owner)
	Requests that the decoder immediately discard all pending buffers.
vlc_input_decoder_t *	vlc_input_decoder_CreateSubDec (vlc_input_decoder_t *p_owner, const struct vlc_input_decoder_cfg *cfg)
	This function Creates and adds the requested SubDec.
void	vlc_input_decoder_ChangePause (vlc_input_decoder_t *p_owner, bool b_paused, vlc_tick_t i_date)
	This function changes the pause state.
void	vlc_input_decoder_ChangeRate (vlc_input_decoder_t *owner, float rate)
	Changes the decoder rate.
void	vlc_input_decoder_ChangeDelay (vlc_input_decoder_t *owner, vlc_tick_t delay)
void	vlc_input_decoder_StartWait (vlc_input_decoder_t *p_owner)
	This function makes the decoder start waiting for a valid data block from its fifo.
void	vlc_input_decoder_StopWait (vlc_input_decoder_t *p_owner)
	This function exits the waiting mode of the decoder.
void	vlc_input_decoder_Wait (vlc_input_decoder_t *p_owner)
	This function waits for the decoder to actually receive data.
void	vlc_input_decoder_FrameNext (vlc_input_decoder_t *p_owner)
	This function forces the display of the next picture.
size_t	vlc_input_decoder_GetFifoSize (vlc_input_decoder_t *p_owner)
	This function returns the current size in bytes of the decoder fifo.
static bool	DecoderHasVbi (decoder_t *dec)
int	vlc_input_decoder_GetVbiPage (vlc_input_decoder_t *owner, bool *opaque)
int	vlc_input_decoder_SetVbiPage (vlc_input_decoder_t *owner, unsigned page)
int	vlc_input_decoder_SetVbiOpaque (vlc_input_decoder_t *owner, bool opaque)
void	vlc_input_decoder_SetVoutMouseEvent (vlc_input_decoder_t *owner, vlc_mouse_event mouse_event, void *user_data)
int	vlc_input_decoder_AddVoutOverlay (vlc_input_decoder_t *owner, subpicture_t *sub, size_t *channel)
int	vlc_input_decoder_DelVoutOverlay (vlc_input_decoder_t *owner, size_t channel)
int	vlc_input_decoder_SetSpuHighlight (vlc_input_decoder_t *p_owner, const vlc_spu_highlight_t *spu_hl)

Variables
static const struct decoder_owner_callbacks	dec_video_cbs
static const struct decoder_owner_callbacks	dec_thumbnailer_cbs
static const struct decoder_owner_callbacks	dec_audio_cbs
static const struct decoder_owner_callbacks	dec_spu_cbs

Detailed Description

The input decoder connects the input client pushing data to the decoder implementation (through the matching elementary stream) and the following output for audio, video and subtitles.

It follows the locking rules below:

• The fifo cannot be locked when calling function from the decoder module implementation.
• However, the decoder module implementation might indirectly lock the fifo when calling the owner methods, in particular to send a frame or update the output status.
• The input code can lock the fifo to modify the global state of the input decoder.

Backpressure preventing starvation is done by the pacing of the decoder, the calls into the decoder implementation, and the limits of the fifo queue.

Basically a very fast decoder will often wait since the fifo will be consumed really quickly and thus almost never stay under the lock. Likewise, when the decoder is slower and the fifo can grow, it also means that the decoder thread will wait more often on the decoder_t::pf_decode call, which is done without the fifo lock as per above rules.

In addition with the standard input/output cycle from the decoder, the video decoders can create sub-decoders for the closed captions support embedded in the supplementary information from the codecs.

To do so, they need to create a decoder_cc_desc_t matching with the format that needs to be described (number of channels, type of channels) and they then create them along with the closed-captions content with decoder_QueueCc.

In the input/decoder.c code, the access to the sub-decoders in the subdecs.list table is protected through the subdecs.lock mutex. Taking this lock ensures that the sub-decoder won't get asynchronously removed while using it, and any mutex from the sub-decoder can then be taken under this lock.

Macro Definition Documentation

BLOCK_FLAG_CORE_PRIVATE_RELOADED

#define BLOCK_FLAG_CORE_PRIVATE_RELOADED   (1 << BLOCK_FLAG_CORE_PRIVATE_SHIFT)

DECODER_BOGUS_VIDEO_DELAY

#define DECODER_BOGUS_VIDEO_DELAY   ((vlc_tick_t)(DEFAULT_PTS_DELAY * 30))

decoder_Notify

#define decoder_Notify	(		decoder_priv,
			event,
			...
	)

Value:

    if (decoder_priv->cbs && decoder_priv->cbs->event) \
        decoder_priv->cbs->event(decoder_priv, __VA_ARGS__, \
                                 decoder_priv->cbs_userdata);

DECODER_SPU_VOUT_WAIT_DURATION

#define DECODER_SPU_VOUT_WAIT_DURATION   VLC_TICK_FROM_MS(200)

PREROLL_FORCED

#define PREROLL_FORCED   VLC_TICK_MAX

PREROLL_NONE

#define PREROLL_NONE   VLC_TICK_MIN

Enumeration Type Documentation

reload

enum reload

Enumerator
RELOAD_NO_REQUEST
RELOAD_DECODER
RELOAD_DECODER_AOUT

Function Documentation

aout_replaygain_changed()

static bool aout_replaygain_changed ( const audio_replay_gain_t *  a, const audio_replay_gain_t *  b  )

static

References AUDIO_REPLAY_GAIN_MAX, audio_replay_gain_t::pb_gain, audio_replay_gain_t::pb_peak, audio_replay_gain_t::pf_gain, and audio_replay_gain_t::pf_peak.

Referenced by ModuleThread_UpdateAudioFormat().

CreateDecoder()

static vlc_input_decoder_t * CreateDecoder ( vlc_object_t *  p_parent, const struct vlc_input_decoder_cfg *  cfg  )

static

Create a decoder object.

Parameters

p_parent	a VLC parent object to inherit variable from
cfg	the input decoder configuration

Returns

a new input decoder object

References AUDIO_ES, es_format_t::audio_replay_gain, AUDIO_REPLAY_GAIN_MAX, vlc_input_decoder_t::b_draining, vlc_input_decoder_t::b_first, vlc_input_decoder_t::b_fmt_description, vlc_input_decoder_t::b_has_data, vlc_input_decoder_t::b_idle, es_format_t::b_packetized, vlc_input_decoder_t::b_sout_created, vlc_input_decoder_t::b_supported, vlc_input_decoder_t::b_waiting, block_FifoNew, decoder_t::cbs, vlc_input_decoder_t::cbs, vlc_input_decoder_cfg::cbs, vlc_input_decoder_cfg::cbs_data, vlc_input_decoder_t::cbs_userdata, vlc_input_decoder_t::cc, vlc_input_decoder_cfg::cc_decoder, vlc_input_decoder_cfg::clock, vlc_input_decoder_t::count, vlc_input_decoder_t::dec, dec_audio_cbs, vlc_input_decoder_t::dec_fmt_in, dec_spu_cbs, dec_thumbnailer_cbs, dec_video_cbs, decoder_Init(), vlc_input_decoder_t::delay, vlc_input_decoder_t::desc, vlc_input_decoder_t::error, es_format_Init(), vlc_input_decoder_t::flushing, vlc_input_decoder_t::fmt, vlc_input_decoder_cfg::fmt, decoder_t::fmt_in, decoder_t::fmt_out, vlc_input_decoder_t::frames_countdown, vlc_input_decoder_t::hw_dec, vlc_input_decoder_cfg::hw_dec, decoder_cc_desc_t::i_608_channels, decoder_cc_desc_t::i_708_channels, es_format_t::i_cat, vlc_input_decoder_t::i_preroll_end, vlc_input_decoder_t::i_spu_channel, vlc_input_decoder_t::i_spu_order, vlc_input_decoder_cfg::input_type, INPUT_TYPE_PREPARSING, INPUT_TYPE_THUMBNAILING, vlc_input_decoder_t::list, LoadDecoder(), vlc_input_decoder_t::lock, vlc_input_decoder_t::master_dec, vlc_input_decoder_t::mouse_event, vlc_input_decoder_t::mouse_lock, vlc_input_decoder_t::mouse_opaque, msg_Err, vlc_input_decoder_t::output_delay, vlc_input_decoder_t::output_paused, vlc_input_decoder_t::output_rate, vlc_input_decoder_t::p_aout, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_clock, vlc_input_decoder_t::p_description, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_packetizer, vlc_input_decoder_t::p_resource, vlc_input_decoder_t::p_sout, vlc_input_decoder_t::p_sout_input, vlc_input_decoder_t::p_vout, vlc_input_decoder_t::pause_date, vlc_input_decoder_t::paused, audio_replay_gain_t::pb_gain, audio_replay_gain_t::pb_peak, audio_replay_gain_t::pf_gain, audio_replay_gain_t::pf_peak, vlc_input_decoder_t::pktz_fmt_in, PREROLL_NONE, vlc_input_decoder_t::psz_id, vlc_input_decoder_t::rate, vlc_input_decoder_t::reload, RELOAD_NO_REQUEST, vlc_input_decoder_cfg::resource, vlc_input_decoder_t::selected_codec, vlc_input_decoder_cfg::sout, vlc_input_decoder_t::sout_es_id, SPU_ES, vlc_input_decoder_cfg::str_id, vlc_input_decoder_t::subdecs, unlikely, VIDEO_ES, VLC_CODEC_CEA608, VLC_CODEC_CEA708, vlc_cond_init(), vlc_custom_create, vlc_list_init(), vlc_mutex_init(), vlc_object_delete, VLC_TICK_INVALID, VOUT_SPU_CHANNEL_INVALID, vlc_input_decoder_t::vout_started, vlc_input_decoder_t::wait_acknowledge, vlc_input_decoder_t::wait_fifo, and vlc_input_decoder_t::wait_request.

Referenced by decoder_New().

CreateVoutIfNeeded()

static int CreateVoutIfNeeded ( vlc_input_decoder_t *  p_owner )

static

References vlc_input_decoder_t::dec, DecoderUpdateFormatLocked(), vlc_input_decoder_t::fmt, decoder_t::fmt_out, video_format_t::i_chroma, es_format_t::i_codec, video_format_t::i_height, video_format_t::i_sar_den, video_format_t::i_sar_num, video_format_t::i_visible_height, video_format_t::i_visible_width, video_format_t::i_width, video_format_t::i_x_offset, video_format_t::i_y_offset, input_resource_RequestVout(), msg_Dbg, msg_Err, video_format_t::multiview_mode, video_format_t::orientation, vlc_input_decoder_t::out_pool, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_resource, vlc_input_decoder_t::p_vout, picture_pool_Release(), es_format_t::video, vlc_fifo_Lock(), vlc_fifo_Unlock(), vout_configuration_t::vout, vlc_input_decoder_t::vout_order, and vlc_input_decoder_t::vout_started.

Referenced by ModuleThread_GetDecoderDevice(), and ModuleThread_UpdateVideoFormat().

dec_get_owner()

static vlc_input_decoder_t * dec_get_owner ( decoder_t *  p_dec )

inlinestatic

References container_of.

Referenced by InputThread_GetInputAttachments(), ModuleThread_GetDecoderDevice(), ModuleThread_GetDisplayDate(), ModuleThread_GetDisplayRate(), ModuleThread_NewSpuBuffer(), ModuleThread_NewVideoBuffer(), ModuleThread_QueueAudio(), ModuleThread_QueueCc(), ModuleThread_QueueSpu(), ModuleThread_QueueThumbnail(), ModuleThread_QueueVideo(), ModuleThread_UpdateAudioFormat(), ModuleThread_UpdateVideoFormat(), MouseEvent(), and thumbnailer_buffer_new().

Decoder_ChangeOutputDelay()

static void Decoder_ChangeOutputDelay ( vlc_input_decoder_t *  p_owner, vlc_tick_t  delay  )

static

References AUDIO_ES, vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, vlc_input_decoder_t::i_spu_channel, msg_Dbg, vlc_input_decoder_t::output_delay, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, SPU_ES, VIDEO_ES, vlc_aout_stream_ChangeDelay(), vlc_assert_unreachable, vlc_fifo_Assert, vout_ChangeDelay(), vout_ChangeSpuDelay(), VOUT_SPU_CHANNEL_INVALID, and vlc_input_decoder_t::vout_started.

Referenced by Decoder_UpdateOutState(), and DecoderThread().

Decoder_ChangeOutputPause()

static void Decoder_ChangeOutputPause ( vlc_input_decoder_t *  p_owner, bool  paused, vlc_tick_t  date  )

static

References AUDIO_ES, vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, msg_Dbg, vlc_input_decoder_t::output_paused, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, SPU_ES, VIDEO_ES, vlc_aout_stream_ChangePause(), vlc_assert_unreachable, vlc_fifo_Assert, vout_ChangePause(), and vlc_input_decoder_t::vout_started.

Referenced by Decoder_UpdateOutState(), and DecoderThread().

Decoder_ChangeOutputRate()

static void Decoder_ChangeOutputRate ( vlc_input_decoder_t *  p_owner, float  rate  )

static

References AUDIO_ES, vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, vlc_input_decoder_t::i_spu_channel, msg_Dbg, vlc_input_decoder_t::output_rate, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, SPU_ES, VIDEO_ES, vlc_aout_stream_ChangeRate(), vlc_assert_unreachable, vlc_fifo_Assert, vout_ChangeRate(), vout_ChangeSpuRate(), VOUT_SPU_CHANNEL_INVALID, and vlc_input_decoder_t::vout_started.

Referenced by Decoder_UpdateOutState(), and DecoderThread().

decoder_New()

static vlc_input_decoder_t * decoder_New ( vlc_object_t *  p_parent, const struct vlc_input_decoder_cfg *  cfg  )

static

References _, AUDIO_ES, es_format_t::b_packetized, CreateDecoder(), vlc_input_decoder_t::dec, DecoderThread(), DecoderUnsupportedCodec(), DeleteDecoder(), vlc_input_decoder_t::error, vlc_input_decoder_cfg::fmt, decoder_t::fmt_in, es_format_t::i_cat, es_format_t::i_codec, msg_Err, N_, decoder_t::p_module, vlc_input_decoder_t::p_sout, vlc_input_decoder_t::p_sout_input, vlc_input_decoder_t::psz_id, vlc_input_decoder_cfg::sout, sout_InputNew(), vlc_input_decoder_cfg::str_id, vlc_input_decoder_t::thread, UNKNOWN_ES, VIDEO_ES, vlc_clone(), vlc_dialog_display_error, vlc_gettext(), and vlc_input_decoder_IsSynchronous().

Referenced by vlc_input_decoder_Create(), and vlc_input_decoder_New().

decoder_NewAudioBuffer()

vlc_frame_t * decoder_NewAudioBuffer	(	decoder_t *	dec,
		int	i_nb_samples
	)

This function will return a new audio buffer usable by a decoder as an output buffer.

It must be released with block_Release() or returned it to the caller as a decoder_QueueAudio parameter.

References es_format_t::audio, block_Alloc, decoder_t::fmt_out, audio_format_t::i_bytes_per_frame, audio_format_t::i_frame_length, vlc_frame_t::i_length, vlc_frame_t::i_nb_samples, vlc_frame_t::i_pts, and likely.

Decoder_UpdateOutState()

static void Decoder_UpdateOutState ( vlc_input_decoder_t *  owner )

static

References Decoder_ChangeOutputDelay(), Decoder_ChangeOutputPause(), Decoder_ChangeOutputRate(), vlc_input_decoder_t::delay, vlc_input_decoder_t::pause_date, vlc_input_decoder_t::paused, and vlc_input_decoder_t::rate.

Referenced by ModuleThread_NewSpuBuffer(), ModuleThread_UpdateAudioFormat(), and ModuleThread_UpdateVideoFormat().

DecoderHasVbi()

static bool DecoderHasVbi ( decoder_t *  dec )

static

References decoder_t::fmt_in, es_format_t::i_cat, es_format_t::i_codec, SPU_ES, var_Type(), VLC_CODEC_TELETEXT, and VLC_VAR_INTEGER.

Referenced by vlc_input_decoder_GetVbiPage(), vlc_input_decoder_SetVbiOpaque(), and vlc_input_decoder_SetVbiPage().

DecoderPlayCcLocked()

static void DecoderPlayCcLocked ( vlc_input_decoder_t *  p_owner, vlc_frame_t *  p_cc, const decoder_cc_desc_t *  p_desc  )

static

References vlc_input_decoder_t::aborting, block_Duplicate, block_FifoPut, block_Release, vlc_input_decoder_t::cc, vlc_input_decoder_t::count, vlc_input_decoder_t::desc, vlc_input_decoder_t::desc_changed, vlc_input_decoder_t::flushing, decoder_cc_desc_t::i_608_channels, decoder_cc_desc_t::i_708_channels, decoder_cc_desc_t::i_reorder_depth, vlc_input_decoder_t::list, vlc_input_decoder_t::lock, vlc_input_decoder_t::p_fifo, SubDecoderIsCc(), vlc_input_decoder_t::subdecs, vlc_fifo_Assert, vlc_frame_Release(), vlc_list_foreach, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by ModuleThread_QueueCc(), and PacketizerGetCc().

DecoderSendSubstream()

static void DecoderSendSubstream ( vlc_input_decoder_t *  p_owner )

static

References asprintf(), vlc_input_decoder_t::b_sout_created, block_Release, subs_format_t::cc, vlc_input_decoder_t::cc, vlc_input_decoder_t::dec, es_format_Clean(), es_format_Init(), vlc_input_decoder_t::fmt, es_format_t::i_group, decoder_cc_desc_t::i_reorder_depth, subs_format_t::i_reorder_depth, vlc_input_decoder_t::p_sout, vlc_input_decoder_t::p_sout_input, decoder_t::pf_get_cc, vlc_input_decoder_t::psz_id, vlc_input_decoder_t::sout_es_id, sout_InputNew(), sout_InputSendBuffer(), SOUT_STREAM_WANTS_SUBSTREAMS, sout_StreamControl(), SPU_ES, es_format_t::subs, VLC_CODEC_CEA608, and VLC_SUCCESS.

Referenced by DecoderThread_ProcessSout().

DecoderThread()

static void * DecoderThread ( void *  p_data )

static

The decoding main loop.

Parameters

p_data

the input decoder object

References vlc_input_decoder_t::aborting, AUDIO_ES, vlc_input_decoder_t::b_draining, vlc_input_decoder_t::b_idle, DATA_ES, vlc_input_decoder_t::dec, Decoder_ChangeOutputDelay(), Decoder_ChangeOutputPause(), Decoder_ChangeOutputRate(), DecoderThread_Flush(), DecoderThread_ProcessInput(), vlc_input_decoder_t::delay, vlc_input_decoder_t::flushing, decoder_t::fmt_in, vlc_input_decoder_t::frames_countdown, es_format_t::i_cat, vlc_input_decoder_t::i_preroll_end, likely, vlc_input_decoder_t::output_delay, vlc_input_decoder_t::output_paused, vlc_input_decoder_t::output_rate, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::pause_date, vlc_input_decoder_t::paused, PREROLL_NONE, vlc_input_decoder_t::rate, SPU_ES, VIDEO_ES, vlc_aout_stream_Drain(), vlc_cond_signal(), vlc_fifo_DequeueUnlocked(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_fifo_Wait(), vlc_thread_set_name(), vlc_input_decoder_t::wait_acknowledge, and vlc_input_decoder_t::wait_fifo.

Referenced by decoder_New().

DecoderThread_DecodeBlock()

static void DecoderThread_DecodeBlock ( vlc_input_decoder_t *  p_owner, vlc_frame_t *  frame  )

static

References BLOCK_FLAG_CORE_PRIVATE_RELOADED, block_Release, vlc_input_decoder_t::dec, DecoderThread_ProcessInput(), vlc_input_decoder_t::error, vlc_frame_t::i_dts, vlc_frame_t::i_flags, vlc_frame_t::i_pts, decoder_t::obj, vlc_input_decoder_t::p_fifo, decoder_t::pf_decode, vlc_input_decoder_t::psz_id, RequestReload(), unlikely, vlc_assert_unreachable, vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_object_get_tracer(), vlc_tracer_TraceStreamDTS(), VLCDEC_ECRITICAL, VLCDEC_RELOAD, and VLCDEC_SUCCESS.

Referenced by DecoderThread_ProcessInput().

DecoderThread_Flush()

static void DecoderThread_Flush ( vlc_input_decoder_t *  p_owner )

static

References vlc_input_decoder_t::dec, vlc_input_decoder_t::error, vlc_input_decoder_t::p_packetizer, and decoder_t::pf_flush.

Referenced by DecoderThread(), and vlc_input_decoder_Flush().

DecoderThread_ProcessInput()

static void DecoderThread_ProcessInput ( vlc_input_decoder_t *  p_owner, vlc_frame_t *  frame  )

static

Decode a frame.

Parameters

p_owner	the input decoder object
frame	the block to decode

References block_ChainRelease, BLOCK_FLAG_CORE_PRIVATE_RELOADED, block_Release, vlc_input_decoder_t::dec, DecoderThread_DecodeBlock(), DecoderThread_ProcessSout(), DecoderThread_Reload(), DecoderUpdatePreroll(), vlc_input_decoder_t::error, es_format_IsSimilar(), es_format_LogDifferences(), decoder_t::fmt_in, decoder_t::fmt_out, vlc_frame_t::i_buffer, vlc_frame_t::i_flags, vlc_input_decoder_t::i_preroll_end, msg_Dbg, msg_Warn, vlc_input_decoder_t::p_fifo, vlc_frame_t::p_next, vlc_input_decoder_t::p_packetizer, vlc_input_decoder_t::p_sout, PacketizerGetCc(), decoder_t::pf_get_cc, decoder_t::pf_packetize, vlc_input_decoder_t::reload, RELOAD_DECODER, RELOAD_DECODER_AOUT, RELOAD_NO_REQUEST, unlikely, vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_object_logger, and VLC_SUCCESS.

Referenced by DecoderThread(), DecoderThread_DecodeBlock(), vlc_input_decoder_DecodeWithStatus(), and vlc_input_decoder_Drain().

DecoderThread_ProcessSout()

static void DecoderThread_ProcessSout ( vlc_input_decoder_t *  p_owner, vlc_frame_t *  frame  )

static

References block_ChainRelease, block_Release, vlc_input_decoder_t::dec, DecoderSendSubstream(), DecoderUpdateFormatLocked(), vlc_input_decoder_t::error, vlc_input_decoder_t::fmt, decoder_t::fmt_in, es_format_t::i_codec, es_format_t::i_group, es_format_t::i_id, msg_Err, vlc_input_decoder_t::p_fifo, vlc_frame_t::p_next, vlc_input_decoder_t::p_sout, vlc_input_decoder_t::p_sout_input, decoder_t::pf_packetize, vlc_input_decoder_t::psz_id, es_format_t::psz_language, sout_InputNew(), sout_InputSendBuffer(), strdup(), VLC_EGENERIC, vlc_fifo_Lock(), and vlc_fifo_Unlock().

Referenced by DecoderThread_ProcessInput().

DecoderThread_Reload()

static int DecoderThread_Reload ( vlc_input_decoder_t *  p_owner, const es_format_t *restrict  p_fmt, enum reload  reload  )

static

References AUDIO_ES, vlc_input_decoder_t::dec, vlc_input_decoder_t::dec_fmt_in, decoder_Clean(), decoder_Init(), vlc_input_decoder_t::error, es_format_Clean(), es_format_Copy(), vlc_input_decoder_t::fmt, es_format_t::i_cat, input_resource_PutAout(), LoadDecoder(), vlc_input_decoder_t::p_aout, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_resource, RELOAD_DECODER_AOUT, vlc_aout_stream_Delete(), VLC_EGENERIC, vlc_fifo_Lock(), vlc_fifo_Unlock(), and VLC_SUCCESS.

Referenced by DecoderThread_ProcessInput().

DecoderUnsupportedCodec()

static void DecoderUnsupportedCodec ( decoder_t *  p_dec, const es_format_t *  fmt, bool  b_decoding  )

static

References _, es_format_t::i_cat, es_format_t::i_codec, msg_Err, N_, VLC_CODEC_UNKNOWN, vlc_dialog_display_error, and vlc_fourcc_GetDescription().

Referenced by decoder_New().

DecoderUpdateFormatLocked()

static void DecoderUpdateFormatLocked ( vlc_input_decoder_t *  p_owner )

static

References vlc_input_decoder_t::b_fmt_description, vlc_input_decoder_t::dec, es_format_Clean(), es_format_Copy(), vlc_input_decoder_t::fmt, decoder_t::fmt_in, decoder_t::fmt_out, es_format_t::i_cat, decoder_t::p_description, vlc_input_decoder_t::p_description, vlc_input_decoder_t::p_fifo, vlc_fifo_Assert, and vlc_meta_Delete().

Referenced by CreateVoutIfNeeded(), DecoderThread_ProcessSout(), ModuleThread_GetDecoderDevice(), and ModuleThread_UpdateAudioFormat().

DecoderUpdatePreroll()

static void DecoderUpdatePreroll ( vlc_tick_t *  pi_preroll, const vlc_frame_t *  p  )

inlinestatic

References BLOCK_FLAG_CORRUPTED, BLOCK_FLAG_DISCONTINUITY, BLOCK_FLAG_PREROLL, p, PREROLL_FORCED, and VLC_TICK_INVALID.

Referenced by DecoderThread_ProcessInput().

DecoderWaitUnblock()

static int DecoderWaitUnblock ( vlc_input_decoder_t *  p_owner )

static

References vlc_input_decoder_t::b_has_data, vlc_input_decoder_t::b_waiting, vlc_input_decoder_t::flushing, vlc_input_decoder_t::p_fifo, vlc_cond_signal(), VLC_ENOENT, vlc_fifo_Assert, vlc_fifo_WaitCond(), VLC_SUCCESS, vlc_input_decoder_t::wait_acknowledge, and vlc_input_decoder_t::wait_request.

Referenced by ModuleThread_PlayAudio(), ModuleThread_PlaySpu(), and ModuleThread_PlayVideo().

DeleteDecoder()

static void DeleteDecoder ( vlc_input_decoder_t *  p_owner, enum es_format_category_e  i_cat  )

static

Destroys a decoder object.

Parameters

p_owner	the input decoder object
i_cat	the elementary stream format category for the decoder

References AUDIO_ES, block_FifoEmpty, block_FifoRelease, vlc_input_decoder_t::cc, DATA_ES, vlc_input_decoder_t::dec, vlc_input_decoder_t::dec_fmt_in, decoder_Clean(), decoder_Destroy(), decoder_Notify, es_format_Clean(), vlc_input_decoder_t::fmt, decoder_t::fmt_in, es_format_t::i_codec, vlc_input_decoder_t::i_spu_channel, input_resource_PutAout(), input_resource_PutVout(), INPUT_RESOURCE_VOUT_STOPPED, msg_Dbg, vlc_input_decoder_t::out_pool, vlc_input_decoder_t::p_aout, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_description, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_packetizer, vlc_input_decoder_t::p_resource, vlc_input_decoder_t::p_sout, vlc_input_decoder_t::p_sout_input, vlc_input_decoder_t::p_vout, picture_pool_Release(), vlc_input_decoder_t::pktz_fmt_in, vlc_input_decoder_t::sout_es_id, sout_InputDelete(), SPU_ES, UNKNOWN_ES, vlc_input_decoder_t::vctx, VIDEO_ES, vlc_aout_stream_Delete(), vlc_assert_unreachable, vlc_meta_Delete(), vlc_video_context_Release(), vout_Hold(), vout_Release(), VOUT_SPU_CHANNEL_INVALID, and vout_UnregisterSubpictureChannel().

Referenced by decoder_New(), and vlc_input_decoder_Delete().

GetCcChannels()

static void GetCcChannels ( vlc_input_decoder_t *  owner, size_t *  max_channels, uint64_t *  bitmap  )

static

References vlc_input_decoder_t::cc, vlc_input_decoder_t::desc, decoder_cc_desc_t::i_608_channels, decoder_cc_desc_t::i_708_channels, vlc_input_decoder_t::selected_codec, vlc_assert_unreachable, VLC_CODEC_CEA608, and VLC_CODEC_CEA708.

Referenced by GetCCDescLocked().

GetCCDescLocked()

static void GetCCDescLocked ( vlc_input_decoder_t *  owner, struct vlc_subdec_desc *  desc  )

static

References asprintf(), subs_format_t::cc, vlc_input_decoder_t::cc, count, vlc_input_decoder_t::desc, vlc_input_decoder_t::desc_changed, es_format_Init(), vlc_input_decoder_cfg::fmt, vlc_subdec_desc::fmt_array, vlc_subdec_desc::fmt_count, GetCcChannels(), subs_format_t::i_channel, es_format_t::i_id, decoder_cc_desc_t::i_reorder_depth, subs_format_t::i_reorder_depth, N_, vlc_input_decoder_t::p_fifo, es_format_t::psz_description, vlc_input_decoder_t::selected_codec, SPU_ES, es_format_t::subs, unlikely, vlc_alloc(), VLC_CODEC_CEA608, vlc_fifo_Assert, and vlc_popcount.

Referenced by GetStatusLocked().

GetStatusLocked()

static void GetStatusLocked ( vlc_input_decoder_t *  p_owner, struct vlc_input_decoder_status *  status  )

static

References vlc_input_decoder_t::b_fmt_description, vlc_input_decoder_status::changed, es_format_Copy(), vlc_input_decoder_t::fmt, vlc_input_decoder_status::fmt, vlc_input_decoder_status::format, GetCCDescLocked(), es_format_t::i_cat, vlc_input_decoder_status::meta, vlc_input_decoder_t::p_description, vlc_input_decoder_t::p_fifo, vlc_input_decoder_status::subdec_desc, UNKNOWN_ES, vlc_fifo_Assert, vlc_meta_Merge(), and vlc_meta_New().

Referenced by vlc_input_decoder_DecodeWithStatus().

InputThread_GetInputAttachments()

static int InputThread_GetInputAttachments ( decoder_t *  p_dec, input_attachment_t ***  ppp_attachment, int *  pi_attachment  )

static

References vlc_input_decoder_t::cbs, vlc_input_decoder_t::cbs_userdata, dec_get_owner(), vlc_input_decoder_callbacks::get_attachments, VLC_EGENERIC, VLC_EINVAL, and VLC_SUCCESS.

LoadDecoder()

static int LoadDecoder ( decoder_t *  p_dec, bool  b_packetizer, es_format_t *  fmt_in  )

static

Load a decoder module.

References AUDIO_ES, decoder_t::b_frame_drop_allowed, decoder_Clean(), ES_CATEGORY_COUNT, es_format_Clean(), decoder_t::fmt_in, es_format_t::i_cat, module_need_var, decoder_t::p_module, SPU_ES, and VIDEO_ES.

Referenced by CreateDecoder(), and DecoderThread_Reload().

ModuleThread_GetDecoderDevice()

static vlc_decoder_device * ModuleThread_GetDecoderDevice ( decoder_t *  p_dec )

static

References CreateVoutIfNeeded(), dec_get_owner(), DecoderUpdateFormatLocked(), vlc_input_decoder_t::fmt, decoder_t::fmt_out, vlc_input_decoder_t::hw_dec, video_format_t::lighting, video_format_t::mastering, video_format_t::MaxCLL, video_format_t::MaxFALL, msg_Dbg, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, es_format_t::video, vlc_fifo_Lock(), vlc_fifo_Unlock(), and vout_GetDevice().

ModuleThread_GetDisplayDate()

static vlc_tick_t ModuleThread_GetDisplayDate ( decoder_t *  p_dec, vlc_tick_t  system_now, vlc_tick_t  i_ts  )

static

References vlc_input_decoder_t::b_waiting, dec_get_owner(), vlc_input_decoder_t::output_rate, vlc_input_decoder_t::p_clock, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::paused, vlc_clock_ConvertToSystem(), vlc_clock_Lock(), vlc_clock_Unlock(), vlc_fifo_Lock(), vlc_fifo_Unlock(), and VLC_TICK_INVALID.

ModuleThread_GetDisplayRate()

static float ModuleThread_GetDisplayRate ( decoder_t *  p_dec )

static

References dec_get_owner(), vlc_input_decoder_t::output_rate, vlc_input_decoder_t::p_clock, vlc_input_decoder_t::p_fifo, vlc_fifo_Lock(), and vlc_fifo_Unlock().

ModuleThread_NewSpuBuffer()

static subpicture_t * ModuleThread_NewSpuBuffer ( decoder_t *  p_dec, const subpicture_updater_t *  p_updater  )

static

References channel_order, dec_get_owner(), decoder_Notify, DECODER_SPU_VOUT_WAIT_DURATION, Decoder_UpdateOutState(), vlc_input_decoder_t::error, subpicture_t::i_channel, subpicture_t::i_order, vlc_input_decoder_t::i_spu_channel, vlc_input_decoder_t::i_spu_order, input_resource_HoldVout(), msg_Warn, vlc_input_decoder_t::p_clock, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_resource, vlc_input_decoder_t::p_vout, subpicture_New(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_tick_sleep(), VLC_VOUT_ORDER_NONE, vlc_input_decoder_t::vout_order, vout_RegisterSubpictureChannelInternal(), vout_Release(), VOUT_SPU_CHANNEL_INVALID, and vout_UnregisterSubpictureChannel().

ModuleThread_NewVideoBuffer()

static picture_t * ModuleThread_NewVideoBuffer ( decoder_t *  p_dec )

static

References dec_get_owner(), vlc_input_decoder_t::out_pool, vlc_input_decoder_t::p_vout, picture_pool_Wait(), and picture_Reset().

ModuleThread_PlayAudio()

static int ModuleThread_PlayAudio ( vlc_input_decoder_t *  p_owner, vlc_frame_t *  p_audio  )

static

References vlc_input_decoder_t::aborting, AOUT_DEC_CHANGED, AOUT_DEC_FAILED, block_Release, vlc_input_decoder_t::dec, DecoderWaitUnblock(), vlc_input_decoder_t::flushing, vlc_input_decoder_t::i_preroll_end, vlc_frame_t::i_pts, msg_Dbg, msg_Warn, vlc_input_decoder_t::p_astream, PREROLL_NONE, vlc_input_decoder_t::reload, RELOAD_DECODER_AOUT, RequestReload(), unlikely, vlc_aout_stream_Flush(), vlc_aout_stream_Play(), VLC_EGENERIC, VLC_SUCCESS, and VLC_TICK_INVALID.

Referenced by ModuleThread_QueueAudio().

ModuleThread_PlaySpu()

static void ModuleThread_PlaySpu ( vlc_input_decoder_t *  p_owner, subpicture_t *  p_subpic  )

static

References vlc_input_decoder_t::dec, DecoderWaitUnblock(), subpicture_t::i_start, msg_Warn, vlc_input_decoder_t::p_vout, subpicture_Delete(), VLC_SUCCESS, VLC_TICK_INVALID, and vout_PutSubpicture().

Referenced by ModuleThread_QueueSpu().

ModuleThread_PlayVideo()

static int ModuleThread_PlayVideo ( vlc_input_decoder_t *  p_owner, picture_t *  p_picture  )

static

References vlc_input_decoder_t::aborting, vlc_input_decoder_t::b_first, picture_t::b_force, picture_t::b_still, vlc_input_decoder_t::b_waiting, picture_t::date, vlc_input_decoder_t::dec, DecoderWaitUnblock(), vlc_input_decoder_t::flushing, vlc_input_decoder_t::frames_countdown, vlc_input_decoder_t::i_preroll_end, likely, msg_Dbg, msg_Warn, vlc_input_decoder_t::p_vout, vlc_input_decoder_t::paused, picture_Release(), PREROLL_NONE, unlikely, VLC_EGENERIC, VLC_SUCCESS, VLC_TICK_INVALID, vout_Flush(), vout_FlushAll, vout_PutPicture(), and vlc_input_decoder_t::vout_started.

Referenced by ModuleThread_QueueVideo().

ModuleThread_QueueAudio()

static void ModuleThread_QueueAudio ( decoder_t *  p_dec, vlc_frame_t *  p_aout_buf  )

static

References dec_get_owner(), decoder_Notify, vlc_frame_t::i_dts, vlc_frame_t::i_pts, ModuleThread_PlayAudio(), decoder_t::obj, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::psz_id, vlc_aout_stream_GetResetStats(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_object_get_tracer(), VLC_SUCCESS, and vlc_tracer_TraceStreamDTS().

ModuleThread_QueueCc()

static void ModuleThread_QueueCc ( decoder_t *  p_videodec, vlc_frame_t *  p_cc, const decoder_cc_desc_t *  p_desc  )

static

References vlc_input_decoder_t::b_supported, block_Release, vlc_input_decoder_t::cc, dec_get_owner(), DecoderPlayCcLocked(), vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_packetizer, decoder_t::pf_get_cc, unlikely, vlc_fifo_Lock(), and vlc_fifo_Unlock().

ModuleThread_QueueSpu()

static void ModuleThread_QueueSpu ( decoder_t *  p_dec, subpicture_t *  p_spu  )

static

References dec_get_owner(), vlc_input_decoder_t::i_preroll_end, subpicture_t::i_start, subpicture_t::i_stop, ModuleThread_PlaySpu(), decoder_t::obj, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, vlc_input_decoder_t::psz_id, subpicture_Delete(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_object_get_tracer(), VLC_TICK_INVALID, and vlc_tracer_TraceStreamPTS().

ModuleThread_QueueThumbnail()

static void ModuleThread_QueueThumbnail ( decoder_t *  p_dec, picture_t *  p_pic  )

static

References vlc_input_decoder_t::b_first, dec_get_owner(), decoder_Notify, vlc_input_decoder_t::p_fifo, picture_Release(), vlc_fifo_Lock(), and vlc_fifo_Unlock().

ModuleThread_QueueVideo()

static void ModuleThread_QueueVideo ( decoder_t *  p_dec, picture_t *  p_pic  )

static

References picture_t::date, dec_get_owner(), decoder_Notify, ModuleThread_PlayVideo(), decoder_t::obj, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, vlc_input_decoder_t::psz_id, vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_object_get_tracer(), VLC_SUCCESS, vlc_tracer_TraceStreamPTS(), and vout_GetResetStatistic().

ModuleThread_UpdateAudioFormat()

static int ModuleThread_UpdateAudioFormat ( decoder_t *  p_dec )

static

References AOUT_CHAN_LEFT, AOUT_CHAN_RIGHT, AOUT_CHANMODE_DOLBYSTEREO, AOUT_FMTS_IDENTICAL, aout_FormatPrepare(), aout_replaygain_changed(), es_format_t::audio, es_format_t::audio_replay_gain, dec_get_owner(), Decoder_UpdateOutState(), DecoderUpdateFormatLocked(), vlc_aout_stream_cfg::fmt, vlc_input_decoder_t::fmt, decoder_t::fmt_in, decoder_t::fmt_out, audio_format_t::i_bitspersample, audio_format_t::i_bytes_per_frame, audio_format_t::i_chan_mode, es_format_t::i_codec, audio_format_t::i_format, audio_format_t::i_frame_length, audio_format_t::i_physical_channels, es_format_t::i_profile, input_resource_GetAout(), input_resource_PutAout(), vlc_input_decoder_t::p_aout, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_clock, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_resource, vlc_input_decoder_t::psz_id, var_InheritInteger(), var_TriggerCallback(), vlc_aout_stream_Delete(), vlc_aout_stream_New(), vlc_fifo_Lock(), and vlc_fifo_Unlock().

ModuleThread_UpdateVideoFormat()

static int ModuleThread_UpdateVideoFormat ( decoder_t *  p_dec, vlc_video_context *  vctx  )

static

References CreateVoutIfNeeded(), dec_get_owner(), decoder_Notify, Decoder_UpdateOutState(), es_format_Clean(), vlc_input_decoder_t::fmt, decoder_t::fmt_in, decoder_t::fmt_out, video_format_t::i_chroma, es_format_t::i_codec, decoder_t::i_extra_picture_buffers, input_resource_RequestVout(), INPUT_RESOURCE_VOUT_NOTCHANGED, INPUT_RESOURCE_VOUT_STARTED, INPUT_RESOURCE_VOUT_STOPPED, MouseEvent(), msg_Err, vlc_input_decoder_t::out_pool, vlc_input_decoder_t::p_clock, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_resource, vlc_input_decoder_t::p_vout, picture_pool_NewFromFormat(), vlc_input_decoder_t::psz_id, vlc_input_decoder_t::vctx, es_format_t::video, VLC_CODEC_AV1, VLC_CODEC_DIRAC, VLC_CODEC_H264, VLC_CODEC_HEVC, VLC_CODEC_MP4V, VLC_CODEC_VP5, VLC_CODEC_VP6, VLC_CODEC_VP6F, VLC_CODEC_VP8, VLC_CODEC_VVC, vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_video_context_Hold(), vlc_video_context_Release(), vout_configuration_t::vout, vlc_input_decoder_t::vout_order, and vlc_input_decoder_t::vout_started.

MouseEvent()

static void MouseEvent ( const vlc_mouse_t *  newmouse, void *  user_data  )

static

References dec_get_owner(), vlc_input_decoder_t::mouse_event, vlc_input_decoder_t::mouse_lock, vlc_input_decoder_t::mouse_opaque, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by ModuleThread_UpdateVideoFormat().

PacketizerGetCc()

static void PacketizerGetCc ( vlc_input_decoder_t *  p_owner, decoder_t *  p_dec_cc  )

static

References vlc_input_decoder_t::b_supported, vlc_input_decoder_t::cc, DecoderPlayCcLocked(), and decoder_t::pf_get_cc.

Referenced by DecoderThread_ProcessInput().

RemoveCcDecoder()

static void RemoveCcDecoder ( vlc_input_decoder_t *  owner, vlc_input_decoder_t *  subdec  )

static

References vlc_input_decoder_t::cc, vlc_input_decoder_t::count, vlc_input_decoder_t::list, vlc_input_decoder_t::lock, vlc_input_decoder_t::node, vlc_input_decoder_t::subdecs, vlc_assert_unreachable, vlc_list_foreach, vlc_list_remove(), vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by vlc_input_decoder_Delete().

RequestReload()

static void RequestReload ( vlc_input_decoder_t *  p_owner )

static

References vlc_input_decoder_t::reload, RELOAD_DECODER, and RELOAD_NO_REQUEST.

Referenced by DecoderThread_DecodeBlock(), and ModuleThread_PlayAudio().

SubDecoderIsCc()

static bool SubDecoderIsCc ( vlc_input_decoder_t *  subdec )

static

References vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, es_format_t::i_codec, SPU_ES, VLC_CODEC_CEA608, and VLC_CODEC_CEA708.

Referenced by DecoderPlayCcLocked().

thumbnailer_buffer_new()

static picture_t * thumbnailer_buffer_new ( decoder_t *  p_dec )

static

References vlc_input_decoder_t::b_first, dec_get_owner(), decoder_t::fmt_out, vlc_input_decoder_t::p_fifo, picture_NewFromFormat(), es_format_t::video, vlc_fifo_Lock(), and vlc_fifo_Unlock().

thumbnailer_get_device()

static vlc_decoder_device * thumbnailer_get_device ( decoder_t *  p_dec )

static

References VLC_UNUSED.

vlc_input_decoder_AddVoutOverlay()

int vlc_input_decoder_AddVoutOverlay	(	vlc_input_decoder_t *	owner,
		subpicture_t *	sub,
		size_t *	channel
	)

References subpicture_t::b_ephemer, vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, subpicture_t::i_channel, subpicture_t::i_order, subpicture_t::i_start, subpicture_t::i_stop, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, VIDEO_ES, VLC_EGENERIC, vlc_fifo_Lock(), vlc_fifo_Unlock(), VLC_SUCCESS, vlc_tick_now(), vout_PutSubpicture(), and vout_RegisterSubpictureChannel().

Referenced by EsOutVaControlLocked().

vlc_input_decoder_ChangeDelay()

void vlc_input_decoder_ChangeDelay	(	vlc_input_decoder_t *	owner,
		vlc_tick_t	delay
	)

References vlc_input_decoder_t::delay, vlc_input_decoder_t::p_fifo, vlc_fifo_Lock(), and vlc_fifo_Unlock().

Referenced by EsOutDecoderChangeDelay().

vlc_input_decoder_ChangePause()

void vlc_input_decoder_ChangePause	(	vlc_input_decoder_t *	p_owner,
		bool	b_paused,
		vlc_tick_t	i_date
	)

This function changes the pause state.

The date parameter MUST hold the exact date at which the change has been done for proper vout/aout pausing.

References vlc_input_decoder_t::frames_countdown, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::pause_date, vlc_input_decoder_t::paused, vlc_fifo_Lock(), vlc_fifo_Signal(), and vlc_fifo_Unlock().

Referenced by EsOutCreateDecoder(), and EsOutDecodersChangePause().

vlc_input_decoder_ChangeRate()

void vlc_input_decoder_ChangeRate	(	vlc_input_decoder_t *	dec,
		float	rate
	)

Changes the decoder rate.

This function changes rate of the intended playback speed to nominal speed.

Parameters

dec	decoder
rate	playback rate (default is 1)

References vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::rate, vlc_fifo_Lock(), and vlc_fifo_Unlock().

Referenced by EsOutChangeRate(), and EsOutCreateDecoder().

vlc_input_decoder_Create()

vlc_input_decoder_t * vlc_input_decoder_Create	(	vlc_object_t *	p_parent,
		const es_format_t *	fmt,
		const char *	es_id,
		struct vlc_clock_t *	clock,
		input_resource_t *	p_resource
	)

Spawn a decoder thread outside of the input thread.

References vlc_input_decoder_cfg::clock, decoder_New(), vlc_input_decoder_cfg::fmt, INPUT_TYPE_PLAYBACK, and var_InheritBool().

vlc_input_decoder_CreateSubDec()

vlc_input_decoder_t * vlc_input_decoder_CreateSubDec	(	vlc_input_decoder_t *	dec,
		const struct vlc_input_decoder_cfg *	cfg
	)

This function Creates and adds the requested SubDec.

The sub decoder returned by this function must be deleted with vlc_input_decoder_Delete() before the parent is deleted.

References _, vlc_input_decoder_t::cc, vlc_input_decoder_t::count, vlc_input_decoder_t::dec, vlc_input_decoder_t::list, vlc_input_decoder_t::lock, vlc_input_decoder_t::master_dec, msg_Err, vlc_input_decoder_t::node, decoder_t::p_module, vlc_input_decoder_t::subdecs, vlc_dialog_display_error, vlc_input_decoder_New(), vlc_list_append(), vlc_mutex_lock(), vlc_mutex_unlock(), and VLC_OBJECT.

Referenced by EsOutCreateDecoder().

vlc_input_decoder_Decode()

void vlc_input_decoder_Decode	(	vlc_input_decoder_t *	p_dec,
		struct vlc_frame_t *	frame,
		bool	do_pace
	)

Put a vlc_frame_t in the decoder's fifo.

Thread-safe w.r.t. the decoder. May be a cancellation point.

Parameters

p_dec	the decoder object
frame	the data frame
do_pace	whether we wait for some decoding to happen or not

References vlc_input_decoder_DecodeWithStatus().

Referenced by EsOutSend().

vlc_input_decoder_DecodeWithStatus()

void vlc_input_decoder_DecodeWithStatus	(	vlc_input_decoder_t *	p_owner,
		vlc_frame_t *	frame,
		bool	b_do_pace,
		struct vlc_input_decoder_status *	status
	)

Get the last status of the decoder.

References vlc_input_decoder_t::b_waiting, block_ChainRelease, BLOCK_FLAG_DISCONTINUITY, vlc_input_decoder_t::dec, DecoderThread_ProcessInput(), GetStatusLocked(), vlc_frame_t::i_flags, msg_Warn, vlc_input_decoder_t::p_fifo, vlc_fifo_DequeueAllUnlocked(), vlc_fifo_GetBytes(), vlc_fifo_GetCount(), vlc_fifo_IsEmpty(), vlc_fifo_Lock(), vlc_fifo_QueueUnlocked(), vlc_fifo_Unlock(), vlc_fifo_WaitCond(), vlc_input_decoder_IsSynchronous(), and vlc_input_decoder_t::wait_fifo.

Referenced by EsOutSend(), and vlc_input_decoder_Decode().

vlc_input_decoder_Delete()

void vlc_input_decoder_Delete

(

vlc_input_decoder_t *

decoder

)

Delete an existing vlc_input_decoder_t instance.

Close the decoder implementation and delete the vlc_input_decoder_t instance. The instance must have been drained using vlc_input_decoder_Drain() or flushed using vlc_input_decoder_Flush() after any previous call to vlc_input_decoder_Decode() before calling the destructor.

Parameters

decoder

The vlc_input_decoder_t to delete, created from vlc_input_decoder_Create().

References vlc_input_decoder_t::aborting, vlc_input_decoder_t::b_waiting, vlc_input_decoder_t::cc, vlc_input_decoder_t::count, vlc_input_decoder_t::dec_fmt_in, DeleteDecoder(), es_format_t::i_cat, vlc_input_decoder_t::list, vlc_input_decoder_t::lock, vlc_input_decoder_t::master_dec, vlc_input_decoder_t::p_fifo, RemoveCcDecoder(), vlc_input_decoder_t::subdecs, vlc_input_decoder_t::thread, vlc_cond_signal(), vlc_fifo_Lock(), vlc_fifo_Signal(), vlc_fifo_Unlock(), vlc_input_decoder_IsSynchronous(), vlc_join(), vlc_list_is_empty(), vlc_mutex_lock(), vlc_mutex_unlock(), and vlc_input_decoder_t::wait_request.

Referenced by EsOutDestroyDecoder(), EsOutSetRecord(), and EsOutTerminate().

vlc_input_decoder_DelVoutOverlay()

int vlc_input_decoder_DelVoutOverlay	(	vlc_input_decoder_t *	owner,
		size_t	channel
	)

References vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, VIDEO_ES, VLC_EGENERIC, vlc_fifo_Lock(), vlc_fifo_Unlock(), VLC_SUCCESS, and vout_UnregisterSubpictureChannel().

Referenced by EsOutVaControlLocked().

vlc_input_decoder_Drain()

void vlc_input_decoder_Drain

(

vlc_input_decoder_t *

p_owner

)

Signals that there are no further frames to decode, and requests that the decoder drain all pending buffers.

This is used to ensure that all intermediate buffers empty and no samples get lost at the end of the stream.

Note

The function does not actually wait for draining. It just signals that draining should be performed once the decoder has emptied FIFO.

References vlc_input_decoder_t::b_draining, DecoderThread_ProcessInput(), vlc_input_decoder_t::p_fifo, vlc_fifo_Lock(), vlc_fifo_Signal(), vlc_fifo_Unlock(), and vlc_input_decoder_IsSynchronous().

Referenced by EsOutDrainDecoder(), and EsOutDrainSubESes().

vlc_input_decoder_Flush()

void vlc_input_decoder_Flush

(

vlc_input_decoder_t *

p_owner

)

Requests that the decoder immediately discard all pending buffers.

This is useful when seeking or when deselecting a stream.

References AUDIO_ES, vlc_input_decoder_t::b_draining, vlc_input_decoder_t::b_has_data, vlc_input_decoder_t::b_waiting, block_ChainRelease, vlc_input_decoder_t::dec, DecoderThread_Flush(), vlc_input_decoder_t::flushing, decoder_t::fmt_in, vlc_input_decoder_t::frames_countdown, es_format_t::i_cat, vlc_input_decoder_t::i_preroll_end, vlc_input_decoder_t::i_spu_channel, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_sout, vlc_input_decoder_t::p_sout_input, vlc_input_decoder_t::p_vout, vlc_input_decoder_t::paused, PREROLL_NONE, sout_InputFlush(), SPU_ES, unlikely, VIDEO_ES, vlc_aout_stream_Flush(), vlc_cond_signal(), vlc_fifo_DequeueAllUnlocked(), vlc_fifo_Lock(), vlc_fifo_Signal(), vlc_fifo_Unlock(), vlc_fifo_WaitCond(), vlc_input_decoder_IsSynchronous(), vout_FlushAll, vout_FlushSubpictureChannel(), VOUT_SPU_CHANNEL_INVALID, vlc_input_decoder_t::vout_started, vlc_input_decoder_t::wait_acknowledge, and vlc_input_decoder_t::wait_request.

Referenced by EsOutChangePosition(), EsOutDestroyDecoder(), EsOutSetRecord(), and EsOutTerminate().

vlc_input_decoder_FrameNext()

void vlc_input_decoder_FrameNext

(

vlc_input_decoder_t *

p_owner

)

This function forces the display of the next picture.

References vlc_input_decoder_t::dec, decoder_t::fmt_in, vlc_input_decoder_t::frames_countdown, es_format_t::i_cat, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_vout, vlc_input_decoder_t::paused, VIDEO_ES, vlc_fifo_Lock(), vlc_fifo_Signal(), vlc_fifo_Unlock(), and vout_NextPicture().

Referenced by EsOutFrameNext().

vlc_input_decoder_GetFifoSize()

size_t vlc_input_decoder_GetFifoSize

(

vlc_input_decoder_t *

p_owner

)

This function returns the current size in bytes of the decoder fifo.

References block_FifoSize, and vlc_input_decoder_t::p_fifo.

Referenced by EsOutIsExtraBufferingAllowed().

vlc_input_decoder_GetVbiPage()

int vlc_input_decoder_GetVbiPage	(	vlc_input_decoder_t *	owner,
		bool *	opaque
	)

References vlc_input_decoder_t::dec, DecoderHasVbi(), var_GetBool(), and var_GetInteger().

Referenced by EsOutSelectEs().

vlc_input_decoder_IsEmpty()

bool vlc_input_decoder_IsEmpty

(

vlc_input_decoder_t *

p_owner

)

This function returns true if the decoder fifo is empty and false otherwise.

References AUDIO_ES, vlc_input_decoder_t::b_draining, vlc_input_decoder_t::b_waiting, vlc_input_decoder_t::fmt, es_format_t::i_cat, vlc_input_decoder_t::p_astream, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_sout_input, vlc_input_decoder_t::p_vout, VIDEO_ES, vlc_aout_stream_IsDrained(), vlc_fifo_IsEmpty(), vlc_fifo_Lock(), vlc_fifo_Unlock(), and vout_IsEmpty().

Referenced by EsOutDecodersIsEmpty(), EsOutDrainDecoder(), and EsOutVaPrivControlLocked().

vlc_input_decoder_IsSynchronous()

static bool vlc_input_decoder_IsSynchronous ( const vlc_input_decoder_t *  dec )

inlinestatic

When the input decoder is being used only for packetizing (happen in stream output configuration.), there's no need to spawn a decoder thread.

The input_decoder is then considered synchronous.

Return values

true	When no decoder thread will be spawned.
false	When a decoder thread will be spawned.

References vlc_input_decoder_t::p_sout.

Referenced by decoder_New(), vlc_input_decoder_DecodeWithStatus(), vlc_input_decoder_Delete(), vlc_input_decoder_Drain(), vlc_input_decoder_Flush(), vlc_input_decoder_StartWait(), vlc_input_decoder_StopWait(), and vlc_input_decoder_Wait().

vlc_input_decoder_New()

vlc_input_decoder_t * vlc_input_decoder_New	(	vlc_object_t *	parent,
		const struct vlc_input_decoder_cfg *	cfg
	)

Spawns a new decoder thread from the input thread.

Parameters

parent	the VLC object to inherit variable from
cfg	the input decoder configuration

Returns

the spawned decoder object

References decoder_New().

Referenced by EsOutCreateDecoder(), EsOutSetRecord(), and vlc_input_decoder_CreateSubDec().

vlc_input_decoder_SetSpuHighlight()

int vlc_input_decoder_SetSpuHighlight	(	vlc_input_decoder_t *	p_owner,
		const vlc_spu_highlight_t *	spu_hl
	)

References vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::p_sout, vlc_input_decoder_t::p_sout_input, vlc_input_decoder_t::p_vout, SOUT_INPUT_SET_SPU_HIGHLIGHT, sout_InputControl(), SPU_ES, VLC_EGENERIC, vlc_fifo_Lock(), vlc_fifo_Unlock(), VLC_SUCCESS, and vout_SetSpuHighlight().

Referenced by EsOutVaControlLocked().

vlc_input_decoder_SetVbiOpaque()

int vlc_input_decoder_SetVbiOpaque	(	vlc_input_decoder_t *	owner,
		bool	opaque
	)

References vlc_input_decoder_t::dec, DecoderHasVbi(), var_SetBool(), and VLC_EGENERIC.

Referenced by EsOutVaPrivControlLocked().

vlc_input_decoder_SetVbiPage()

int vlc_input_decoder_SetVbiPage	(	vlc_input_decoder_t *	owner,
		unsigned	page
	)

References vlc_input_decoder_t::dec, DecoderHasVbi(), var_SetInteger(), and VLC_EGENERIC.

Referenced by EsOutVaPrivControlLocked().

vlc_input_decoder_SetVoutMouseEvent()

void vlc_input_decoder_SetVoutMouseEvent	(	vlc_input_decoder_t *	owner,
		vlc_mouse_event	mouse_event,
		void *	user_data
	)

References vlc_input_decoder_t::dec, decoder_t::fmt_in, es_format_t::i_cat, vlc_input_decoder_t::mouse_event, vlc_input_decoder_t::mouse_lock, vlc_input_decoder_t::mouse_opaque, VIDEO_ES, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by EsOutCreateDecoder(), and EsOutVaControlLocked().

vlc_input_decoder_StartWait()

void vlc_input_decoder_StartWait

(

vlc_input_decoder_t *

p_owner

)

This function makes the decoder start waiting for a valid data block from its fifo.

References vlc_input_decoder_t::b_first, vlc_input_decoder_t::b_has_data, vlc_input_decoder_t::b_waiting, vlc_input_decoder_t::p_fifo, vlc_cond_signal(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_input_decoder_IsSynchronous(), and vlc_input_decoder_t::wait_request.

Referenced by EsOutChangePosition(), EsOutCreateDecoder(), and EsOutSetRecord().

vlc_input_decoder_StopWait()

void vlc_input_decoder_StopWait

(

vlc_input_decoder_t *

p_owner

)

This function exits the waiting mode of the decoder.

References vlc_input_decoder_t::b_waiting, vlc_input_decoder_t::p_fifo, vlc_cond_signal(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_input_decoder_IsSynchronous(), and vlc_input_decoder_t::wait_request.

Referenced by EsOutDecodersStopBuffering().

vlc_input_decoder_Wait()

void vlc_input_decoder_Wait

(

vlc_input_decoder_t *

p_owner

)

This function waits for the decoder to actually receive data.

References vlc_input_decoder_t::b_has_data, vlc_input_decoder_t::b_idle, vlc_input_decoder_t::b_waiting, vlc_input_decoder_t::dec, msg_Err, vlc_input_decoder_t::p_fifo, vlc_input_decoder_t::paused, vlc_fifo_IsEmpty(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_fifo_WaitCond(), vlc_input_decoder_IsSynchronous(), and vlc_input_decoder_t::wait_acknowledge.

Referenced by EsOutDecodersStopBuffering().

vlc_subdec_desc_Clean()

void vlc_subdec_desc_Clean

(

struct vlc_subdec_desc *

desc

)

References es_format_Clean(), vlc_subdec_desc::fmt_array, and vlc_subdec_desc::fmt_count.

Referenced by EsOutSend().

Variable Documentation

dec_audio_cbs

const struct decoder_owner_callbacks dec_audio_cbs

static

Initial value:

=
{
    .audio = {
        .format_update = ModuleThread_UpdateAudioFormat,
        .queue = ModuleThread_QueueAudio,
    },
    .get_attachments = InputThread_GetInputAttachments,
}

Referenced by CreateDecoder().

dec_spu_cbs

const struct decoder_owner_callbacks dec_spu_cbs

static

Initial value:

=
{
    .spu = {
        .buffer_new = ModuleThread_NewSpuBuffer,
        .queue = ModuleThread_QueueSpu,
    },
    .get_attachments = InputThread_GetInputAttachments,
}

Referenced by CreateDecoder().

dec_thumbnailer_cbs

const struct decoder_owner_callbacks dec_thumbnailer_cbs

static

Initial value:

=
{
    .video = {
        .get_device = thumbnailer_get_device,
        .buffer_new = thumbnailer_buffer_new,
        .queue = ModuleThread_QueueThumbnail,
    },
    .get_attachments = InputThread_GetInputAttachments,
}

Referenced by CreateDecoder().

dec_video_cbs

const struct decoder_owner_callbacks dec_video_cbs

static

Initial value:

=
{
    .video = {
        .get_device = ModuleThread_GetDecoderDevice,
        .format_update = ModuleThread_UpdateVideoFormat,
        .buffer_new = ModuleThread_NewVideoBuffer,
        .queue = ModuleThread_QueueVideo,
        .queue_cc = ModuleThread_QueueCc,
        .get_display_date = ModuleThread_GetDisplayDate,
        .get_display_rate = ModuleThread_GetDisplayRate,
    },
    .get_attachments = InputThread_GetInputAttachments,
}

Referenced by CreateDecoder().
